ED Type Silicon Carbide Rod

MOQ : 10pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 10-1000

Delivery Time : 15 work days

Packaging Details : WOODEN CASE

Voltage : 220V

Diameter : 2mm

Heating Zone : Single

Insulation Material : Mullite

Length : 300mm

Maximum Temperature : 1600°C

Application : High Temperature Heating

Type : Rod

Shape : Straight

Material : Silicon Carbide

Resistance : 10Ω

Wattage : 100W

Connection Type : Threaded

Place of Origin : China

Brand Name : SONGYU

Contact Now

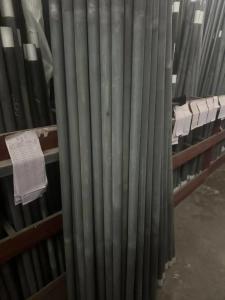

ED Type Silicon Carbide Rod

ED Type Silicon Carbide Rod​
Silicon carbide rods (ED type) are substitute products for thick-end silicon carbide rods.
Advantages and Characteristics:

Low End Resistance: It enables the electric current to be distributed more evenly on the rod body, reducing local overheating and prolonging the service life.
Long Service Life: Thanks to its own properties, it can work stably for a long period of time.
Energy-saving: Under the same power input, it can convert electrical energy into thermal energy more efficiently, thus achieving energy saving.


Application Industries and Equipment:

Rare Earth Fluorescent Powder Industry: Used as heating elements for pusher plate furnaces, mesh belt furnaces, etc.
Electronics Industry: Applied to relevant heating equipment in processes such as electronic component manufacturing.
Magnetic Materials Industry: Adapted to the temperature requirements of magnetic material production and used as heating elements.
Powder Metallurgy Industry: Undertakes the heating task in the production process.
Precision Casting Industry: Provides the necessary heating conditions for the casting process.

Outer Diameter

(OD, mm)

Hot zone

(HZ, mm)

Cold zone

(CZ, mm)

Overall length

(OL, mm)

Range of resistance

(ohms)
8 100-300 60-200 240-700 2.1-8.6
14 100-500 150-350 400-1200 0.7-5.6
16 200-600 200-350 600-1300 0.7-4.4
18 200-800 200-400 600-1600 0.7-5.8
20 200-800 250-600 700-2000 0.6-6.0
25 200-1200 250-700 700-2600 0.4-5.0
30 300-2000 250-800 800-3600 0.4-4.0
35 400-2000 250-800 900-3600 0.5-3.6
40 500-2700 250-800 1000-4300 0.5-3.4
45 500-3000 250-750 1000-4500 0.3-3.0
50 600-2500 300-750 1200-4000 0.3-2.5
54 600-2500 300-750 1200-4000 0.3-3.0
